RC Square Piles

POH YONG RC PILES

Poh Yong Tiles Industries Sdn Bhd, established since 1977 and has become a “Trusted Name In Concrete Products” throughout Sarawak and Sabah.

Poh Yong Pile (PYP) is well known for its high quality R/C piles which are manufactured under stringent quality control and workmanship.

Our team of highly skilled and professional staff ensures conformity and consistent products and emphasis on excellent services to our customers.

Features

Quality Assured Factory Production
PYP pies are manufactured under factory controlled with management and supervision by highly qualified professionals, thus ensuring the highest
quality product and reliability.

Wide Range Of Pile Size

PYP piles are produced in sizes ranging from 150mm to 300mm square with various load carrying capacities to suit different design criteria. This will allow the selection of the optimum and economical piling solutions to all foundation problems.

High Load Carrying Capacities

With use of high compressive strength concrete of more than 45 Mpa,
PYP piles allow for heavier driving conditions in hard soil strata and have higher load carrying capacity for more economical design of foundation.

Design and Material Specifications

: STANDARDS :; MS 1314: Part 3 & 6: 2004
: CONCRETE :; Grade 45 MPa complying with MS 523
: CEMENT :; Ordinary portland cement complying with MS 522
: AGGREGATES :; Conform to MS 29
: REINFORCEMENT :; High tensile deformed bars conform to MS 146

Production

PYP piles are manufactured under factory conditions and the layout of factory is designed with the key objectives of producing a high quality product at all times

PYP piles are cast in specially designed steel moulds that facilitate the accurate placing of steel reinforcement cages and joints. Pile lengths from 3 to 12 metres can be made in the same moulds to the same strict tolerances.

High strength concrete of more than 45 Mpa is mixed using state-of-art concrete batching plant which ensures consistency and uniformity in concrete mix.

Structural Capacity Calculation

Maximum Axial Capacity calculation is based on

Where:

: fcu =; Characteristic 28 day concrete cube strength is 45N/mm².
: Ac =; Cross-sectional area of concrete.
: fsc =; Allowable steel compressive stress 175N/mm² for high yield reinforcement.
: Asc =; Area of main steel reinforcement.

Recommended Axial Capacity Table

Nominal Size	Available Length, L				Dimension			Concrete Grade	Concrete Area	Recommended Axial Load	Recommended Hammer Size
Nominal Size	Available Length, L				C	a	b	Concrete Grade	Concrete Area	Recommended Axial Load	Recommended Hammer Size
(mm)	(m)				(mm)			MPa	(mm2)	(Tonnes)	(Tonnes)
150 x 150	3	6			150	153	147	45	22,500	25	0.8/1.0
175 x 175	3	6			175	178	172	45	30,625	35	0.8/1.0
200 x 200	3	6			200	204	196	45	40,000	45	1.0/1.8
250 x 250	3	6	9	12	250	254	246	45	62,000	75	1.5/2.2
300 x 300		6	9	12	300	305	295	45	90,000	110	2.0/3.5

Note 1. Working load of pile and size selection should be based on Geotechnical calculation and recommendation.

SPECIFICATIONS (MS 1314: PART 3:2004)

Pile Reinforcement Details For CLASS ‘S’

Pile Size (CxC) (mm x mm)	Concrete Cover,F (mm)	Size of Links (mm)	Main Reinforcement	Spiral Links (c-c mm)
				Head/Toe		Transition		Body
				Length	Pitch A	Lenght	Pitch B	Length	Pitch C
200 x 200	30	4.5	4T12	3C	75^*	3C	45-90	< L / 2	90
250 x 250	40	4.5	8T10	3C	55^*	3C	45-85	< L / 2	85
300 x 300	40	6	8T12	3C	45^*	3C	50-150	< L / 2	150

Pile Reinforcement Details For CLASS ‘J’ AND ‘M’

Pile Size (CxC) (mm x mm)	Concrete Cover,F (mm)	Size of Links (mm)	Main Reinforcement		Spiral Links (c-c mm)
			J (1.0%)	M (1.2%)	Head/Toe		Transition		Body
			J (1.0%)	M (1.2%)	Length	Pitch A	Length	Pitch B	Length	Pitch C
200 x 200	30	6	4T12	8T10	3C	75*	3C	45-85	< L / 2	85
250 x 250	40	6	8T10	4T16	3C	60*	3C	45-75	< L / 2	75
300 x 300	40	6	8T12	4T20	3C	55*	3C	45-65	< L / 2	65

* Use double links at pile ends

Pile Joint Details For CLASS ‘S’

Pile Size	Collar	Plain Shoe	Joint Plate
	Thickness X Height	Plate Thickness, t2	Base Plate	Anchorage Bar		Centering Bar Diameter, R	MS Tube Diameter, E
	Thickness X Height	Plate Thickness, t2	Thickness, t1	Diameter, T	Length, d	Centering Bar Diameter, R	MS Tube Diameter, E
mm x mm	mm x mm	mm	mm	mm	mm	mm	mm
200 x 200	1.5 x 50	3	9	12	384	16	20
250 x 250	1.5 x 50	3	9	16	512	16	20
300 x 300	1.5 x 50	3	9	16	512	20	25

Pile Joint Details For CLASS ‘J’ AND ‘M’

Pile Size	Collar	Plain Shoe	Joint Plate
	Thickness X Height	Plate Thickness, t2	Base Plate	Anchorage Bar				Centering Bar Diameter, R	MS Tube Diameter, E
	Thickness X Height	Plate Thickness, t2	Thickness, t1	Diameter, T		Length, d		Centering Bar Diameter, R	MS Tube Diameter, E
mm x mm	mm x mm	mm	mm	mm		mm		mm	mm
				Class J	Class M	Class J	Class M
200 x 200	1.5 x 50	5	12	12	16	384	512	16	20
250 x 250	1.5 x 50	5	12	16	16	512	512	16	20
300 x 300	1.5 x 50	6	15	20	20	640	640	20	25

SPECIFICATIONS (MS 1314: PART 6:2004)

Pile Reinforcement Details For CLASS 'RCS-1'

Pile Size ( C x C ) ( mm x mm)	Concrete Cover, F (mm)	Size of Links (mm)	Main Reinforcement	Spiral Links (c-c mm)
				Head/Toe		Transition		Body
				Length	Picth A	Length	Picth B	Length	Pitch C
150 x 150	30	4.5	4T10	3C	40	3C	45-90	< L / 2	90
175 X 175	30	4.5	4T10	3C	40	3C	45-90	< L / 2	90

Pile joint Details For CLASS 'RCS-1'

Pile Size	Collar	Plain Shoe	Joint Plate
	Thickness x Height	Plate Thickness,t2	Base Plate	Anchorage Bar		Centering Bar Diameter, R	MS Tube Diameter, E
			Thickness, t1	Diameter, T	Length,d
mm x mm	mm x mm	mm	mm	mm	mm	mm	mm
150 x 150	1.5 x 50	3	6	10	350	12	16
175 x 175	1.5 x 50	3	6	10	350	12	16

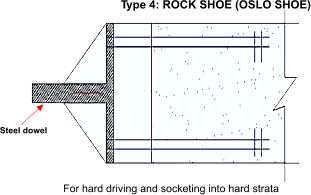

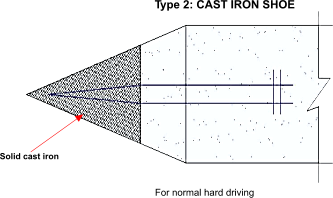

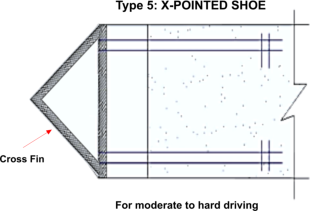

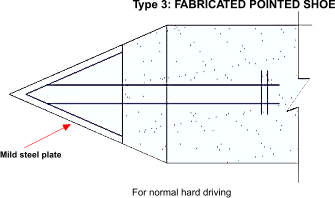

TYPE OF PILE SHOE
